Automobile Manufacturing
Technical Specifications Of IRASHA Tricycles

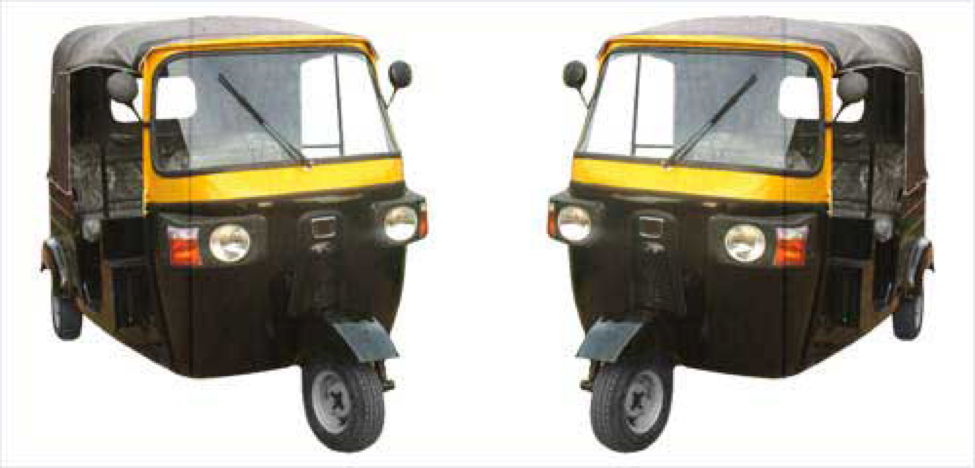

Passenger Tricycles
| Specification | 4 Stroke 205cc |
| Type | 4 stroke, forced air cooled Hand Clutched Inner - Reverse Shaft Driver for Tri Motorcycle 4 Stroke 205cc |
| Engine Type | Single Cylinder Engine |
| Bore MM | 61 |
| Stroke MM | 68 |
| Engine Displacement, C.C. | 205 |
| Maximum Net Power, HP at R/Min | 9ps @ 5500rpm |
| Maximum Net Torque, KG.M at / Min | 13.89 @ 4500rpm |
| Ignition system | CDI |
| Fuel | Petrol |
| Lubrication | Pressure/splash system |
| Starting | Electric Start + Hand Lever |
| Transmission | 4 Forward + 1 Reverse |
| Fuel Tank Capacity, Litre | Full 7.5 litres & 1.5 litres - in Reserve |
| Clutch | With multi plate with oil bath |
| Electricals | |
| System | 12V. DC |
| Battery | 32 AH |
| Head Lamp Twin | 35/35 W/E |
| Tail lamp/stop Lamp | 5/10W |
| Side Indicator Lamp | 10W |
| Horn | 12V. DV |
| Chassis | Reinforced welded steel tubular |
| Features | |
| Fm Radio with built in Speaker | Yes |
| Mobile Charger/ Cigarette Lighter | Yes |
| Fiber Dashboard | Yes |
| Driver Cabin Light | Yes |
| Engine Lights | Yes |
| Dimensions | |
| Length | 2625 MM |
| Width | 1300 MM |
| Height | 1710 MM |
| Wheel Base | 2000 MM |
| Ground Clearance | 200 MM |
| Turning Circle Diameter | 5760 MM |
| Weight in KG. | |
| Kerb weight | 312 |
| Maximum Total Weight | 657 |
| Maximum Payload | 345 |
| Maximum speed | 55 KMPH/HR |
| Chassis and Body | |
| Suspension Front : | Reinforced welded steel Tubular Swing arm with anti-drive link, double acting hydraulic shock absorber & helical coil compression spring |
| Rear : | Swing arm with, double action hydraulic shock absorber & helical coil compression spring |
| Brakes Front : | Hydraulic expanding shoe type size 170mm * 29.5mm wide |
| Rear : | Hydraulic expanding shoe type size 170mm* 29.5mm wide |
| Tyres Front : | 4.00-8, 4PR |
| Rear : | 4.00-8, 4 PR |

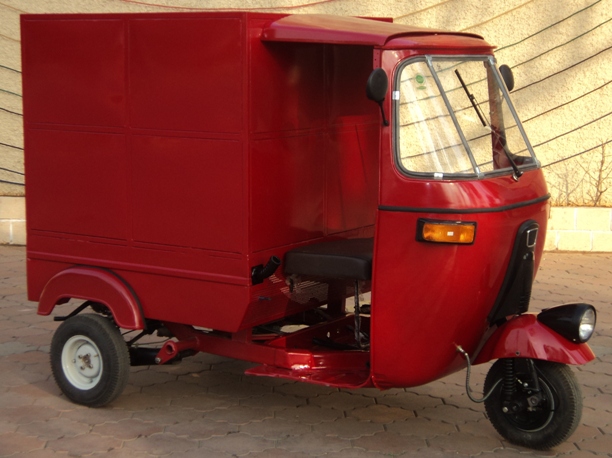

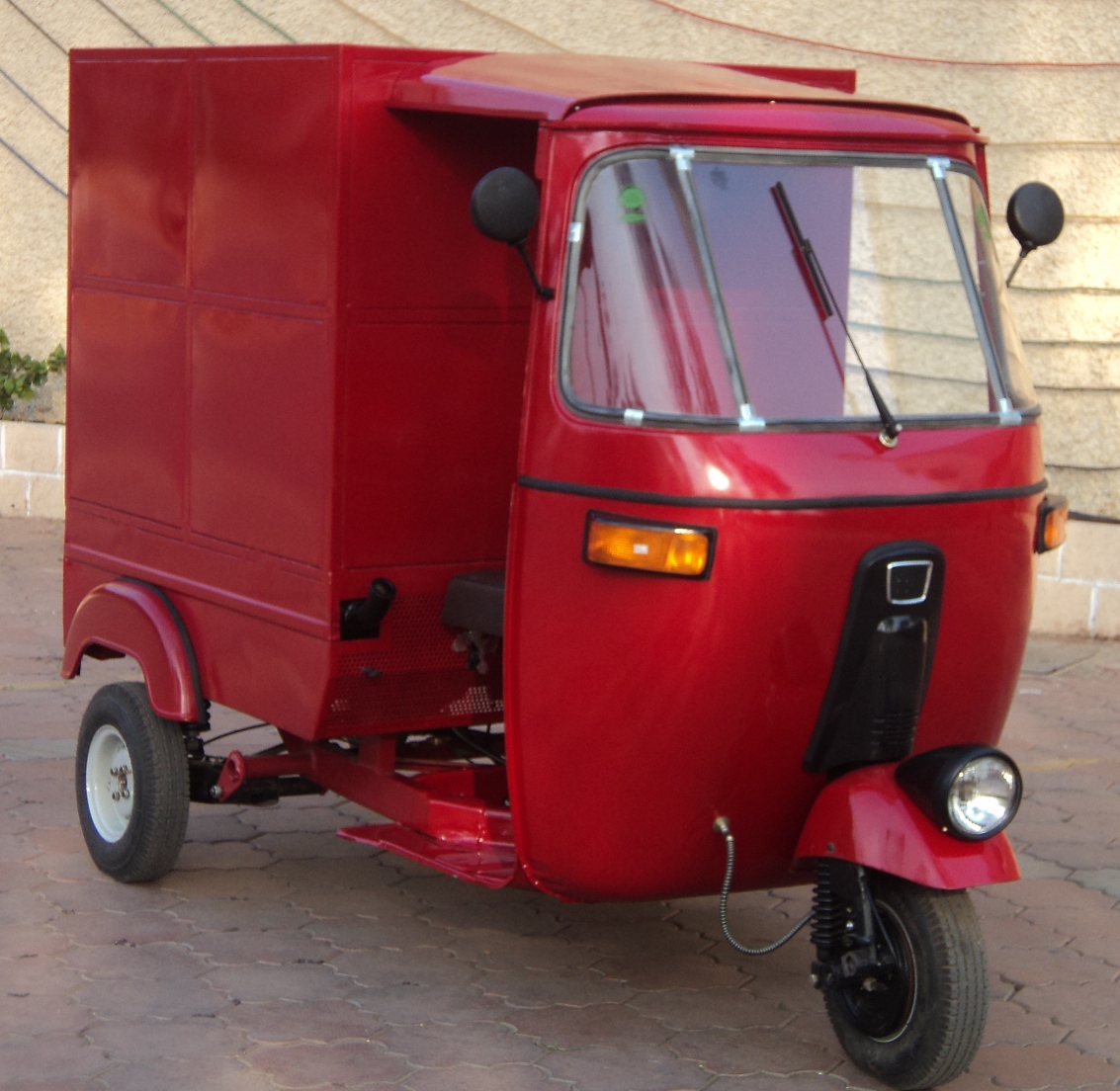

Cargo Tricycles
| Specification | 4 Stroke 205cc |
| Type | 4 stroke, forced air cooled Hand Clutched Inner - Reverse Shaft Driver for Tri Motorcycle 4 Stroke 205cc |
| Engine Type | Single Cylinder Engine |
| Bore MM | 61 |
| Stroke MM | 68 |
| Engine Displacement, C.C. | 198.50 |
| Maximum Net Power, HP at R/Min | 9ps @ 5500rpm |
| Maximum Net Torque, KG.M at / Min | 13.89 @ 4500rpm |
| Ignition system | CDI |
| Fuel | Petrol |
| Lubrication | Pressure/splash system |
| Starting | Electric Start + Hand Lever |
| Transmission | 4 Forward + 1 Reverse |
| Fuel Tank Capacity, Litre | Full 7.5 litres & 1.5 litres - in Reserve |
| Clutch | With multi plate with oil bath |
| Electricals | |
| System | 12V. DC |
| Battery | 32 AH |
| Head Lamp Twin | 35/35 W/E |
| Tail lamp/stop Lamp | 5/10W |
| Side Indicator Lamp | 10W |
| Horn | 12V. DV |
| Chassis | Reinforced welded steel tubular |
| Features | |
| Fm Radio with built in Speaker | Yes |
| Mobile Charger/ Cigarette Lighter | Yes |
| Fiber Dashboard | Yes |
| Driver Cabin Light | Yes |
| Engine Lights | Yes |
| Dimensions | |
| Length | 2665 MM |
| Width | 1320 MM |
| Height | 1750 MM |
| Wheel Base | 2020 MM |
| Ground Clearance | 210 MM |
| Turning Circle Diameter | 5820 MM |
| Weight in KG. | |
| Kerb weight | 312 |
| Maximum Total Weight | 800 |
| Maximum Payload | 495 |
| Maximum speed | 50 KMPH/HR |
| Cargo Area | |
| Length : | 1270 mm |
| Width : | 1200 mm |
| Height : | 290 mm |
| Chassis and Body | |
| Suspension Front : | Reinforced welded steel Tubular Swing arm with anti-drive link, double acting hydraulic shock absorber & helical coil compression spring |
| Rear : | Swing arm with, double action hydraulic shock absorber & helical coil compression spring |
| Brakes Front : | Hydraulic expanding shoe type size 170mm * 29.5mm wide |
| Rear : | Hydraulic expanding shoe type size 170mm* 29.5mm wide |
| Tyres Front : | 4.00-8, 4PR |
| Rear : | 4.00-8, 4 PR |
